CalOffroad Products Ford F Trucks

Ford F Truck - Fox Steering Stabiliser - 2.0 Performance Series IFP

Part No: 980-24-986




Ford F Trucks - Fox Steering Stabiliser - 2.0 Performance Series Stabiliser IFP

Overview - Specifications

Body : 2.0" Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating : Clear-anodized for a durable finish
Internal Reservoir : Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Shaft : 5/8" hard chrome plated heat-treated alloy steel
Oil : JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings : Quiet nitrile rubber allows for increased suspension articulation
Components : Black-anodized, CNC-machined 6061-T6 billet aluminum
Piston : Race-developed high-flow piston design
Valving : Application specific valving to maximize performance
Seals : Redundant sealing pack system main seal, wiper seal, scraper seal


CalOffroadBlock

Part No: RB220
RRP $ 140 Pair

Ford F Trucks - CalOffroad Rear Leaf Spring 2 inch Lift Block Pair

CalOffroad 2" blocks are designed to give approximately 2" lift on spring over models and 2" lowering on spring under models.
Features:
* Rear Block 2 in.
* Center Pinned 3 Deg.
* Ductile Iron

Longer U Bolts may be needed

1in block

Part No: RB120
RRP $ 88 Pair

Ford F Trucks - CalOffroad Rear Leaf Spring 1 inch Lift Block Pair

CalOffroad 1" blocks are designed to give approximately 1" lift on spring over models and 1" lowering on spring under models.
25mm thick solid steel with centre locating pin on one side and locating hole on the other side
Longer U bolts may be needed

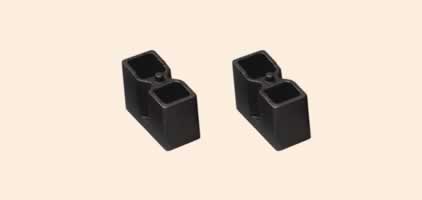

3half in block

Part No: RB235
RRP $ 160 Pair

Ford F Trucks - CalOffroad Rear Leaf Spring 3.5 inch Lift Block Pair

CalOffroad 3.5" blocks are designed to give approximately 3.5" lift on spring over.
U bolts not included

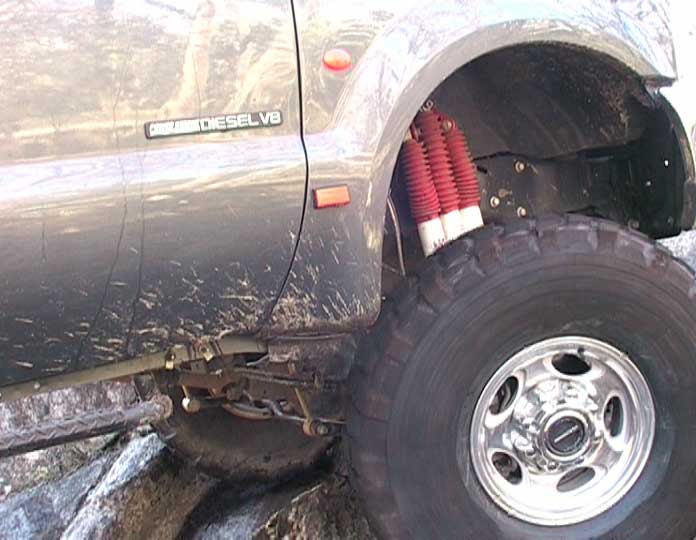

More Pictures of Ford F250 Super Duty 8inch lift

f250 f250 f250 f250 f250
