Part No: CORD405
RRP $ 3,500 Kit

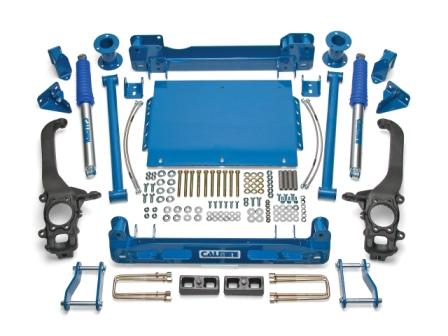

CalOffroad Nissan Navara D40 / Frontier - 5" Performance Suspension Lift Kit

The all new CalOffroad 2005 On Nissan Navara D40 / Frontier,  4WD, lift system is now available.
Constructed using laser crafted components, these kits utilize the most modern manufacturing techniques found in today’s suspension systems.
Our systems include:
*New replacement cast steering knuckles.
*Front differential drop brackets to correct pinion angle.
*Easy to install 1 piece MIG-welded subframes.
*Heavy duty centre skid plate that bolts to the lower subframe for increased strength and protection,
*Extended front and rear stainless steel brake lines.
*Rear Monotube Gas Shocks w/boots.
*Powdercoat finish, and top quality plated hardware provides corrosion resistance, and long service life.

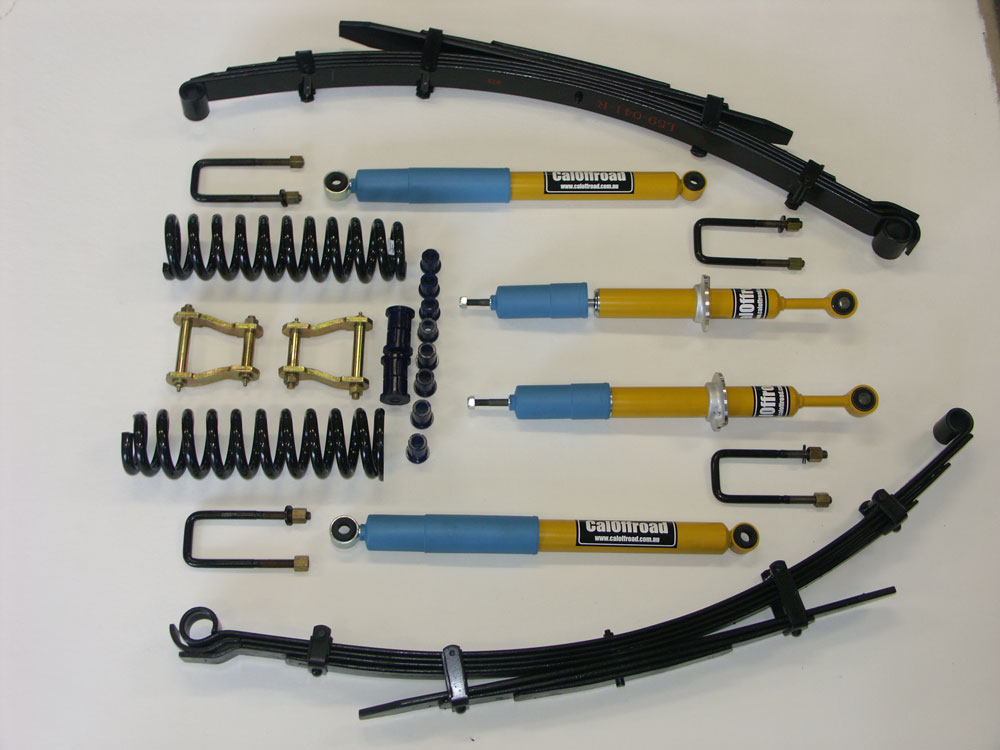

Part No: D40TP202B

RRP $ 2250

Nissan Navara D40 - Tour Pack 2" Suspension Lift Kit
Complete with CalOffroad Bilstein Front and Rear Shocks

Class II Kit Complete.
CalOffroad have now released the new 2” suspension Lift Kit for the Nissan Navara D40 model.

Features include:
* Specially designed longer travel front strut and long travel rear shocks
* New rear leaf springs.
* Greasable Shackles, U- bolts and bushes.
* Flex Series Front Coil Springs
* CalOffroad Bilstein Monotube Long Travel Front Strut 0 - 2” Lift
* CalOffroad Bilstein Monotube Long Travel Rear Shocks included.

Part No: D4020KS
RRP $ 1675

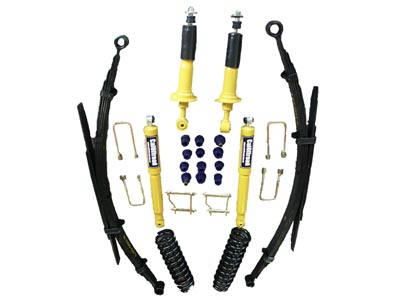

CalOffroad Nissan Navara D40 - 2 Inch Suspension System
With Greasable Shackle.

Features:
*Twin tube longer travel front strut
*CalOffroad Coil springs
*Rear leaf springs
*Longer travel rear shocks
*U bolts
*Bush kit
*Greasable shackles
Items can be bought individually or as a complete system

Part No: NNUA12
RRP $800 Kit

CalOffroad Nissan Navara D40 -  Adjustable Upper Arm Kit

CalOffroad have now released a new adjustable upper arm kit for Nissan Navara D40.
It is common for these vehicles to run out of factory adjustment when wheel aligning after installing lift kit or new suspension.
The CalOffroad new upper control arm provides approximately an additional ±2° of caster and 0° to +5° of camber change.
Built with an OE style ball joint and bushings, this arm is designed to correct alignment angles while maintaining factory ride quality.
These arms can be used in standard trucks or lifted trucks and are great as a race truck or touring fitment.

RRP $1500 Pair

Fox Shock Front  0 - 2" Lift - 2.0 Performance Series Coil-over IFP - Nissan Navara D40

Specifications

Body : 2.0" Metal impacted 6061-T6 aluminum will resist rust over time

Body Plating : Clear-anodized for a durable finish

Internal Reservoir : Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen

Components : Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft : 5/8" hard chrome plated heat-treated alloy steel

Piston : Race-developed high-flow piston design

Valving : Application specific valving to maximize performance

Seals : Redundant sealing pack system main seal, wiper seal, scraper seal

Oil : JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bearing : Large diameter, heavy-duty spherical

Mounting : Direct replacement for stock and aftermarket lifts kits

RRP $280 Each

Fox Shock  Rear 0 - 2" Lift - 2.0 Performance Series IFP Smooth Body  Shock - Nissan Navara D40

Overview - Specifications

Body : 2.0" Metal impacted 6061-T6 aluminum will resist rust over time

Body Plating : Clear-anodized for a durable finish

Internal Reservoir : Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen

Components : Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft : 5/8" hard chrome plated heat-treated alloy steel

Piston : Race-developed high-flow piston design

Valving : Application specific valving to maximize performance

Seals : Redundant sealing pack system main seal, wiper seal, scraper seal

Oil : JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings : Quiet nitrile rubber allows for increased suspension articulation

Mounting : Direct replacement for stock and aftermarket lifts kits

PartNo:398-00-370
RRP $35 Each

Nissan Navara D40 - Fox Coil-over Tooling Spanner - Large Bore.

Spanner Wrench
Zinc plated steel wrench allows for quick and easy preload adjustments on 2.0 diameter coil-over shocks.

PartNo: 398-00-025-A
RRP $ 25 Each

Nissan Navara D40 - Fox Coil-over Tooling Spanner - Adjuster 3/8 Wrench.

Spanner Ratchet Socket
Easily adjust 2.0 coil-over preload and 2.5 rotating remote and piggyback bridges with standard 3/8" ratchet wrench.

Part No: STD402
RRP $ 169 Each

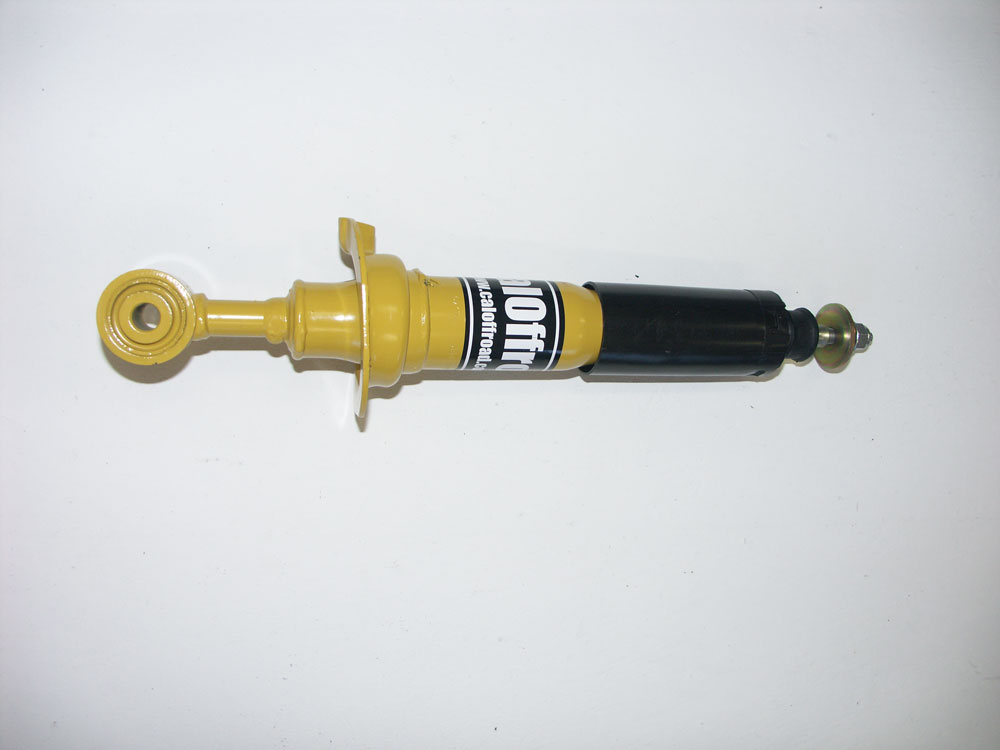

CalOffroad Nissan Navara D40 - 2" Long Travel Front Strut.

Our shock absorbers have been computer designed and engineered for 4x4 vehicles.
They are twin tube with 32mm bores.
They have custom tuned valving and are nitrogen gas charged to transfer the heat from the inner cylinder to the outer case allowing the shock to keep cool and eliminate fade under harsh conditions.
With its improved design and longer travel, you will get better handling and control, on and off the road.
Most of the shock absorbers come complete with polyurethane or rubber bushes fitted for longer life

Part No:SD402R
RRP $ 145 Each

CalOffroad Nissan Navara D40 - 2" Lift Rear Shock

CalOffroad Twin Tube Shock
*Our shock absorbers have been computer designed and engineered for 4x4 vehicles.
*They are twin tube with 32mm bores.
*With some selected part numbers having massive 36mm bore.
*They have custom tuned valving and are nitrogen gas charged to transfer the heat from the inner cylinder to the outer case allowing the shock to keep cool and eliminate fade under harse conditions.
*With its improved design and longer travel, you will get better handling and control on and off the road.
*Most of the shock absorbers come complete with polyurethane or rubber bushes fitted for longer life.

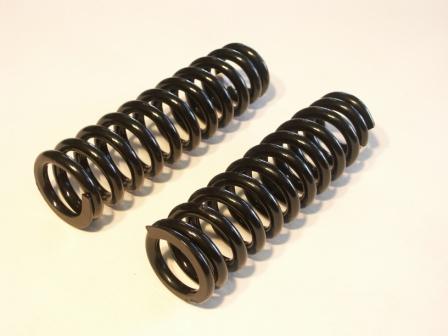

Part No: COD40HD
RRP $ 199 Pair

CalOffroad Nissan Navara D40 - Front Coils Heavy Duty Pair

All CalOffroad Coil Springs are Shot Peened for stress relief
Powder Coat finish for corrosion protection
Scragg and Load tested to ensure exact rate
Computer controlled to ensure perfect pitch and exacting tolerances
Heat treated in electronically controlled furnaces

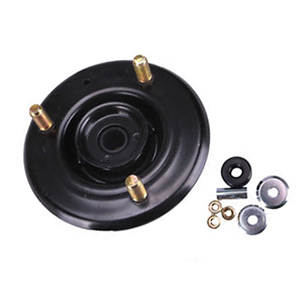

Part No: STD40
RRP $ 75 Each

CalOffroad Nissan Navara D40 - Strut Top

Replace your factory worn out strut tops with CalOffroad aftermarket ones.

Can be used with standard struts or aftermarket struts.

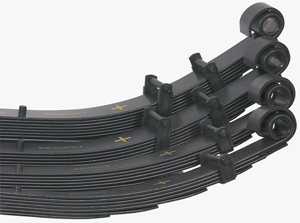

Part No: LSD402
RRP $ 330 Each

CalOffroad Nissan Navara D40 - 2" Rear Leaf Pack

CalOffroad leaf lengths are designed and calculated to achieve a high performance spring.
Top quality Silicon Alloy Spring Steel or Medium to High Carbon Spring Steel are used.
The springs are scragged to help eliminate sagging.
Stringent quality control procedures for the heat treatment (tempering) process ensure CalOffroad springs are made the same exceptional way.

Details and Specifications

RRP $ 795 Kit

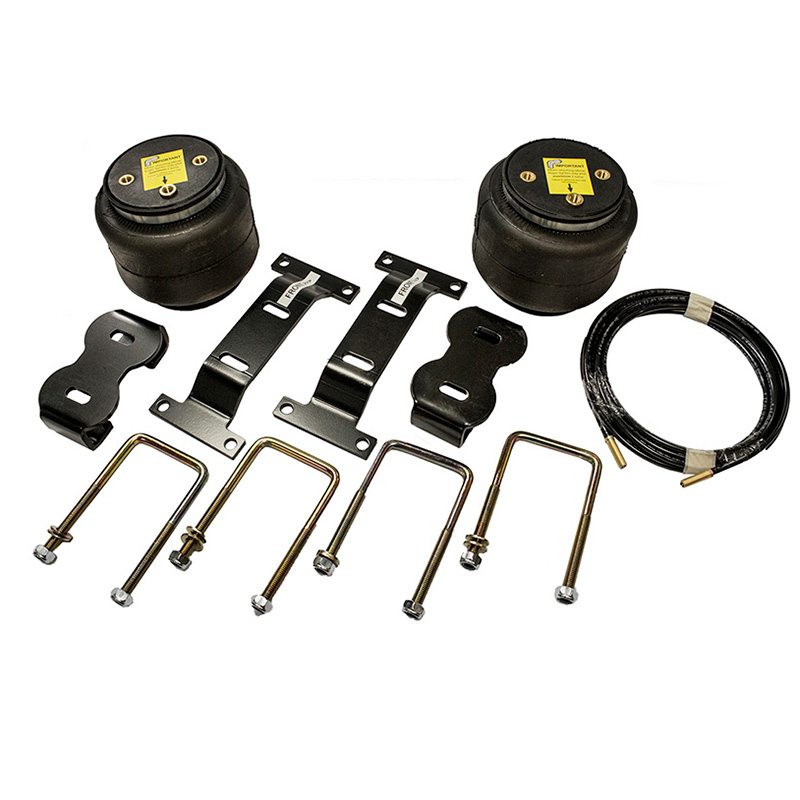

CalOffroad Nissan Navara D40 - Polyair Springs

Standard Height or 2" Lift

Standard Height - Part No: 88124
2" inch Lift - Part No: 88124R

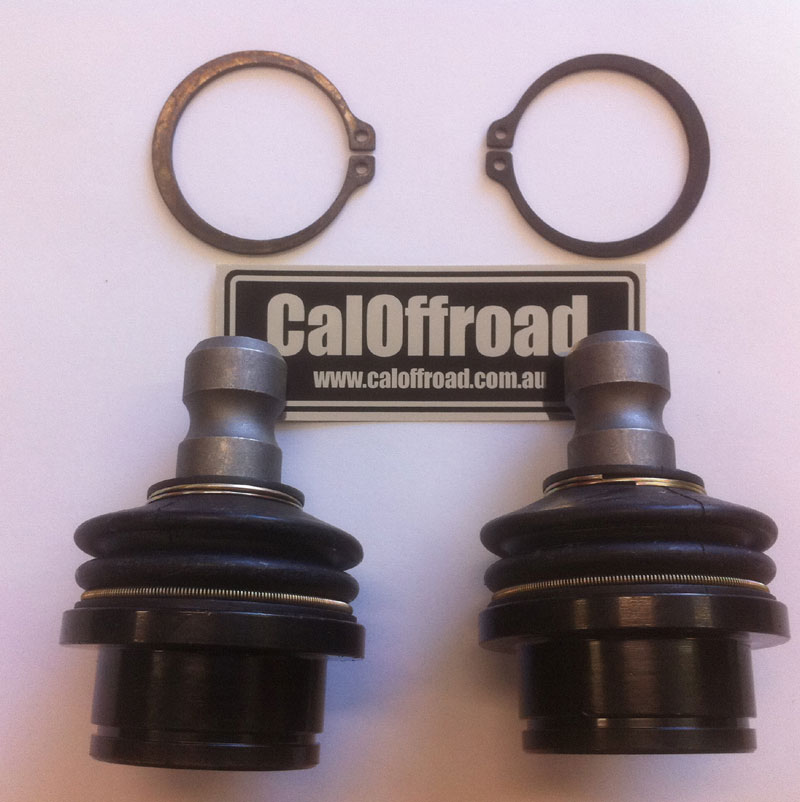

Part No: LBJ40
RRP $ 69 Each

CalOffroad Nissan Navara D40 and Nissan R51 Pathfinder - Lower Ball Joints

CalOffroad have released the new lower ball joint to fit all Nissan Navara D40 and Nissan R51 Pathfinder models.

Previously you had to buy a complete new lower arm just to replace the lower ball joint - Until Now!

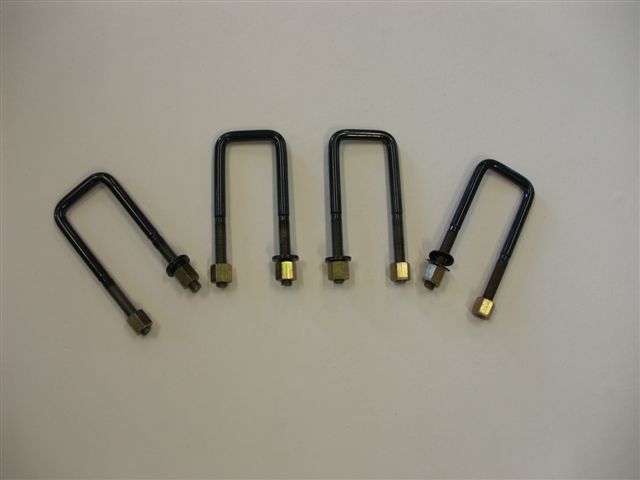

Part No: UBD40
RRP $ 12 Each

CalOffroad Nissan Navara D40 - U-Bolt

CalOffroad U Bolts are a durable and strengthened product made of high quality material, to generate a long life.
All U Bolts are supplied with deep nuts for improved torque-down strength.

Longer U Bolts available on request from $ 15 each.

Part No: GSD40R
RRP $ 135 Pair

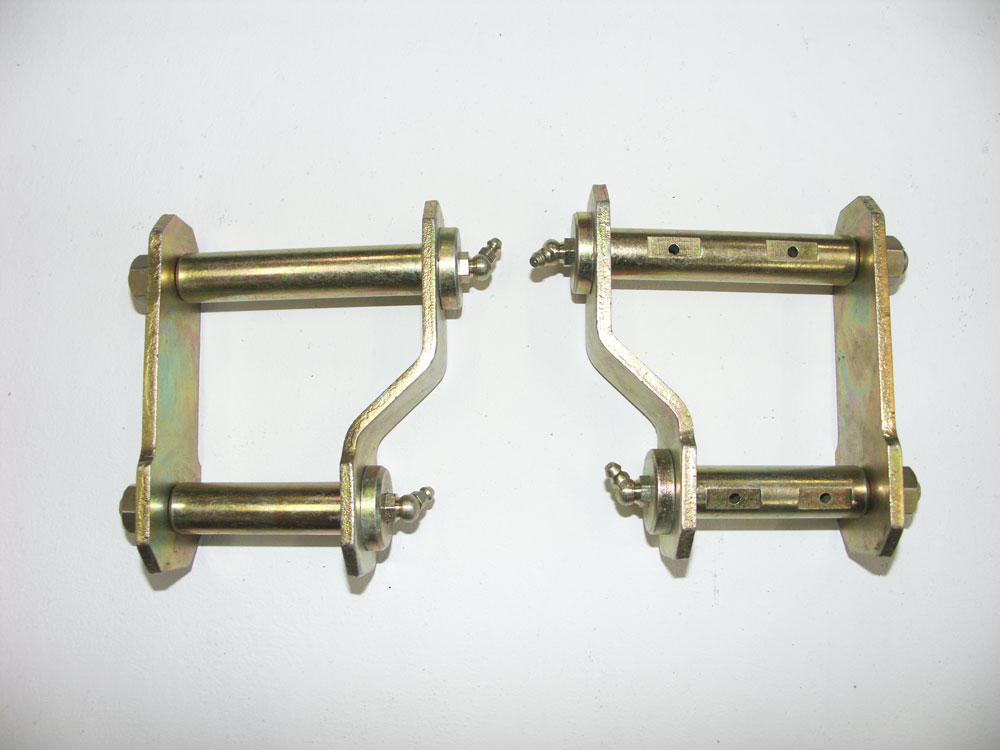

CalOffroad Nissan Navara D40 - Greasable Shackles Rear.

CalOffroad Standard Length Greaseable shackles are used to give a smoother softer ride and will ensure longer life from your bushes.
Features:
*Hardened* in most cases the shackle pins are case hardened to 2.0mm providing higher resistance to wear and resulting in increased pin and bush life.
*Machined *allows greater dispersion and surface coverage of grease aiding in the reduction of shackle pin deterioration, providing superior performance.
*Galvanised and plated* Higher resistance to rust and pin surface deterioration.
*Increased pin life* shackles and plates manufactured to O.E specification or above for increased life and safety

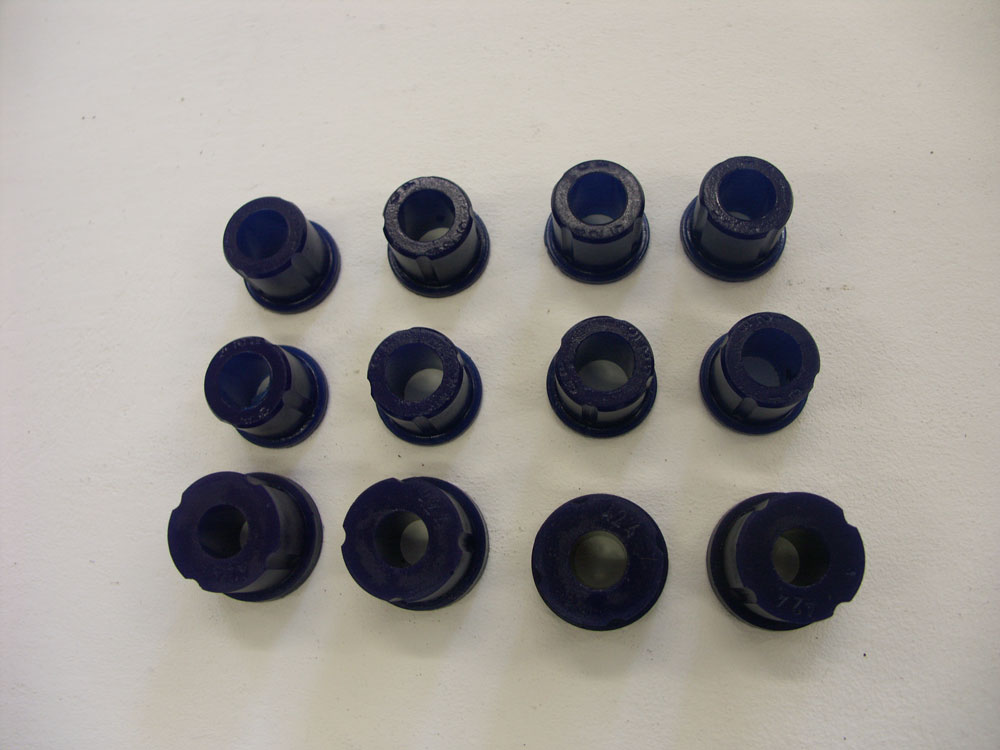

Part No: BKD40
RRP $ 65 Kit

CalOffroad Nissan Navara D40 - Rear Leaf Bush Kit, Poly Greasable

CalOffroad Polyurethane bushes, fitted and used correctly will give a greater extended life than a rubber bush.
It is recommended that greasable shackle and pin kits be fitted with polyurethane bush as it will increase the life of the bush even further.
Polyurethane material is resistant to minerals, petrochemicals and salt water and can withstand tempurature extremes.
It is essential that all bushes (rubber and poly) be fitted to good pins with no corrosion or wear marks, as this would decrease the life of the bush dramatically.

Prod No: RB125
RRP $ 120 Pair

CalOffroad Nissan Navara D40 - 1.25 inch Rear Suspension Block

SUSPENSION BLOCKS, IRON, SET OF 2 -- Install on rear leaf springs TO LIFT VEHICLE 1.25" inches.
Provides 1.25 in. rear lift
1-piece construction with integrated axle pins
Made of high quality ductile iron for durability and long service life.

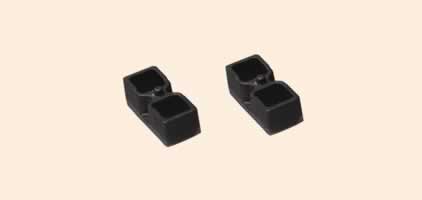

Prod No: RB220
RRP $ 140 Pair

CalOffroad Nissan Navara D40 - 2" Rear Block kit

Features:
* Rear Block 2 in.
* Center Pinned 3 Deg.
* Ductile Iron

Prod No: RB120
RRP $ 90 Pair

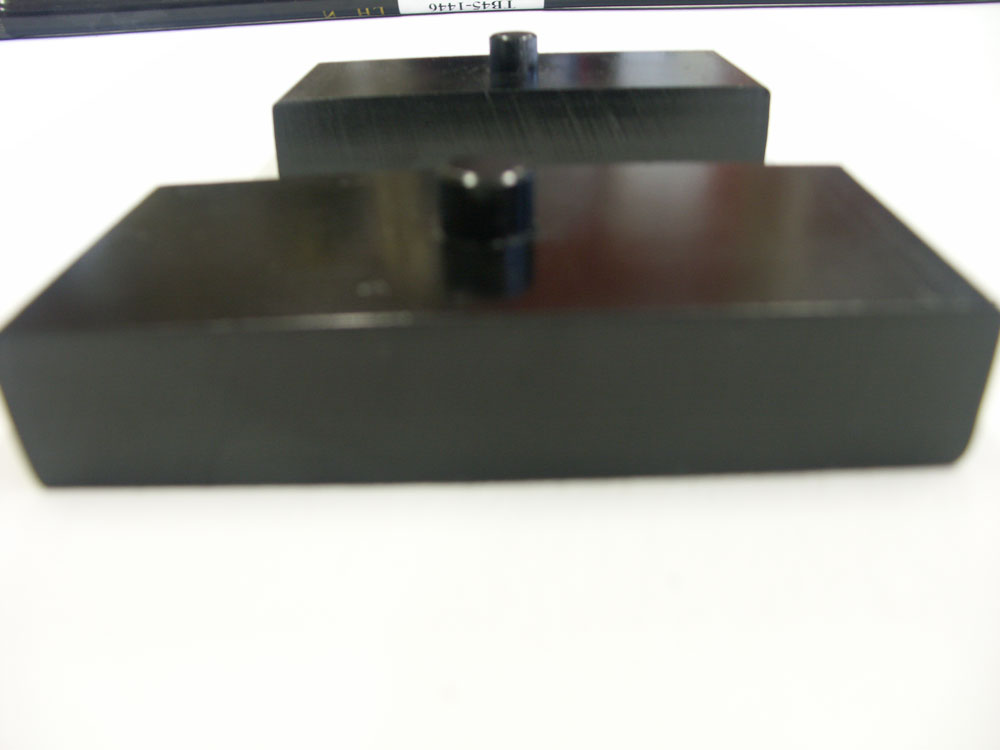

CalOffroad Nissan Navara D40 - 1" Rear Block kit

CalOffroad 1" blocks are designed to give approximately 1" lift on spring over models.
25mm thick solid steel with centre locating pin on one side and locating hole on the other side
Longer U bolts may be needed
