Out of Stock
Part No: HLX60K
RRP $ 3,500 Kit

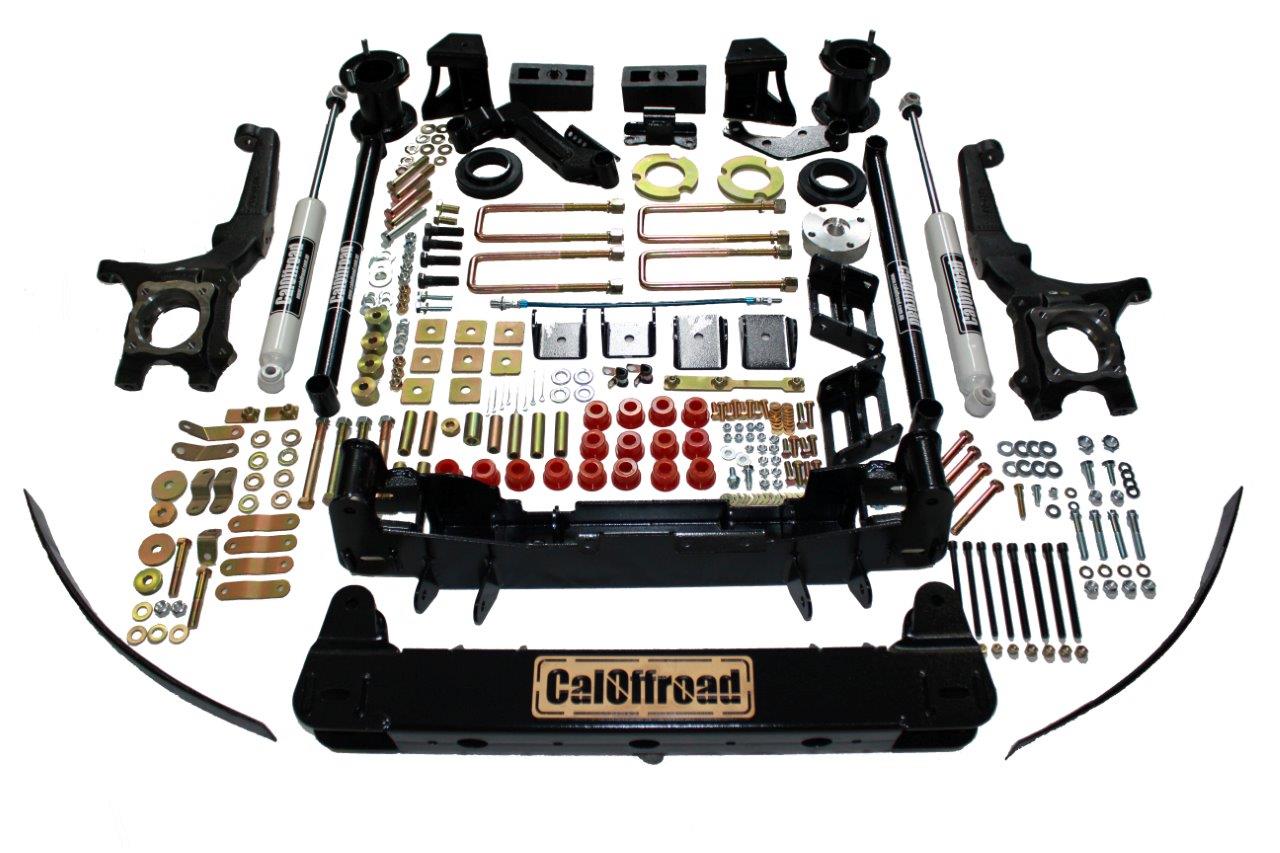

Toyota Hilux/Vigo IFS 150 Series - CalOffroad 6" Lift Kit.

To view this product on a client vehicle:
Click to go to - Customer Rides Toyota Hilux CalOffroad 6 inch lift

Part No: HLTP20BN70
RRP $ 2050 Kit

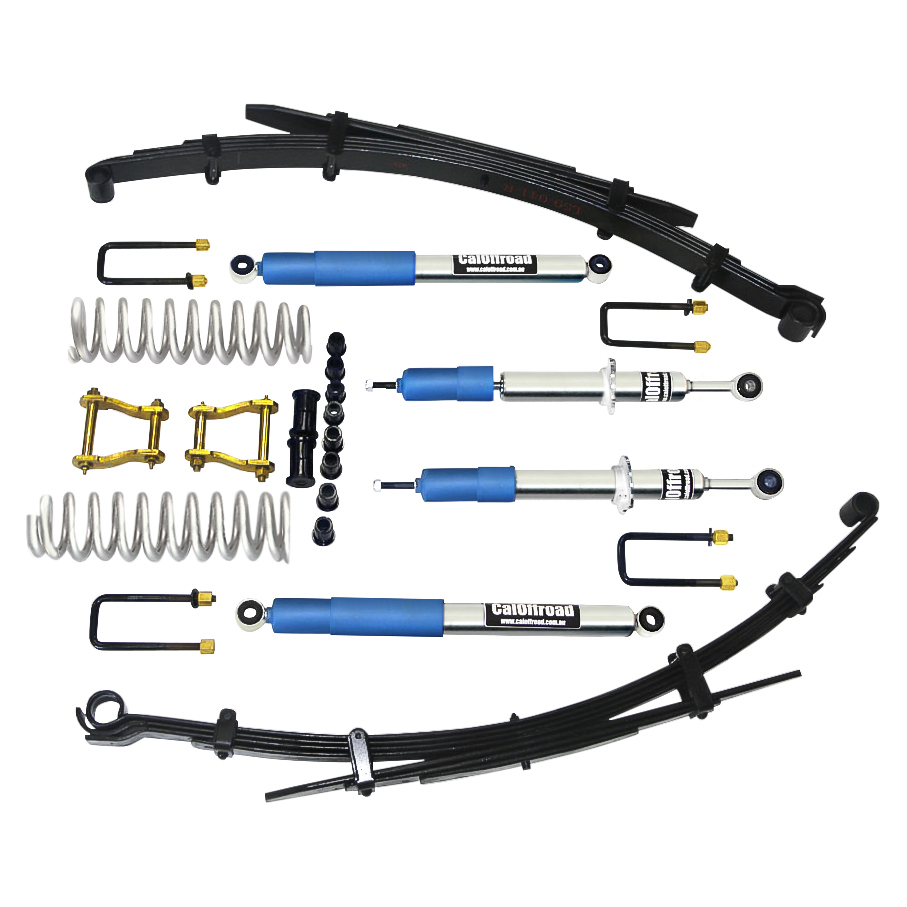

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Bilstein Tour Pack - 2" Suspension Lift Kit
Complete with Bilstein Front Struts and Bilstein Rear Shocks

Class II Kit Complete.
CalOffroad have now released the new 2”  suspension lift for the Toyota Hilux / Vigo 150 Series 2005 model and newer.

Features include:
* Specially designed longer travel front strut and long travel rear shocks
* New rear leaf springs.

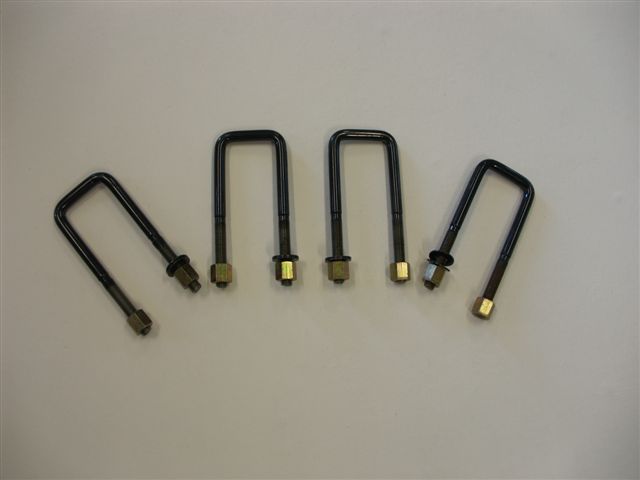

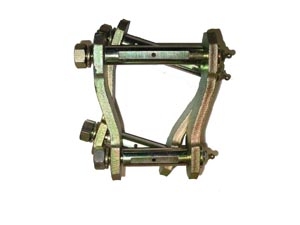

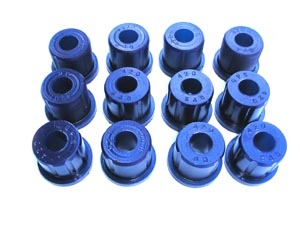

* Greasable Shackles, U- bolts and bushes.
* Choice off Light, Medium, Heavy Duty or Extra Heavy Duty Flex Series Front Coil Springs
* CalOffroad Bilstein Monotube Long Travel Silver Front Strut 2” Lift .
* CalOffroad Bilstein Monotube Long Travel Silver Rear Shocks.
* Everything you need to transform your Hilux

Part No: HLTP30BN70
RRP $ 2050 Kit

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Bilstein Tour Pack - 3" Suspension Lift Kit
Complete with Bilstein Front Struts and Bilstein Rear Shocks

Class II Kit Complete.
CalOffroad have now released the new 3” suspension lift for the Toyota Hilux / Vigo 150 Series 2005 model and newer.

Features include:
* Specially designed longer travel front strut and long travel rear shocks
* New rear leaf springs.
* Greasable Shackles, U- bolts and bushes.
* Choice off Light, Medium, Heavy Duty or Extra Heavy Duty Flex Series Front Coil Springs
* CalOffroad Bilstein Monotube Long Travel Silver Front Strut 3" Lift.
* CalOffroad Bilstein Monotube Long Travel Silver Rear Shocks.
* Everything you need to transform your Hilux

Part No: HLTP20FN70
RRP $ 2999 Kit

Toyota Hilux/Vigo IFS 150 Series-  CalOffroad Fox Tour Pack -  2" Suspension Lift Kit Complete with Fox Front Struts and Fox Rear Shocks

Class II Kit Complete.
CalOffroad have now released the new Fox 2” suspension lift for the Toyota Hilux IFS 150 Series

Features include:
* Specially designed longer travel front coilovers.
* New rear leaf springs.
* Greasable Shackles, U- bolts and bushes.
* Choice off Light, Medium, Heavy Duty or Extra Heavy Duty Flex Series rear leaves.
* Everything you need to transform your Hilux.

Picture may vary slightly from actual kit.

Part No: HLTP30FN70
RRP $ 2999 Kit

Toyota Hilux/Vigo IFS 150 Series-  CalOffroad Fox Tour Pack -  3" Suspension Lift Kit Complete with Fox Front Struts and Fox Rear Shocks

Class II Kit Complete.
CalOffroad have now released the new Fox 3” suspension lift for the Toyota Hilux IFS 150 Series

Features include:
* Specially designed longer travel front coilovers.
* New rear leaf springs.
* Greasable Shackles, U- bolts and bushes.
* Choice off Light, Medium, Heavy Duty or Extra Heavy Duty Flex Series rear leaves.
* Everything you need to transform your Hilux.

Picture may vary slightly from actual kit.

Part No: UCAHLX150
RRP $800 Kit

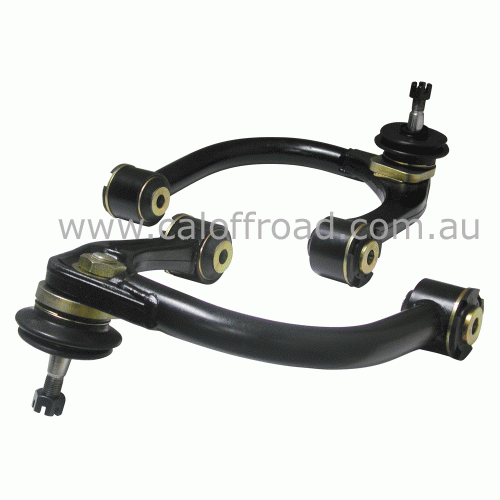

Toyota Hilux/Vigo IFS 150 Series -  CalOffroad Adjustable Upper Control Arm Kit

CalOffroad have now released a new adjustable upper arm kit for Toyota hilux.
It is common for these vehicles to run out of factory adjustment when wheel aligning after installing lift kit or new suspension.
The CalOffroad new upper control arm provides approximately an additional ±2° of caster and 0° to +5° of camber change.
Built with an OE style ball joint and bushings, this arm is designed to correct alignment angles while maintaining factory ride quality.
These arms can be used in standard trucks or lifted trucks and are great as a race truck or touring fitment.

Part No:BKUCAHLX150
RRP $160 Kit

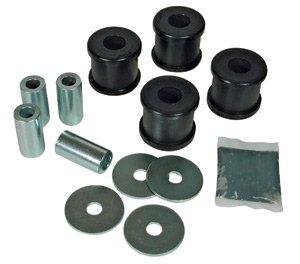

Toyota Hilux / Vigo IFS 150 Series - CalOffroad Adjustable Upper Control Arm Bush Kit

CalOffroad replacement Upper Control Arm  Bushes

Part No: BJUCAHLX
RRP $149 EACH

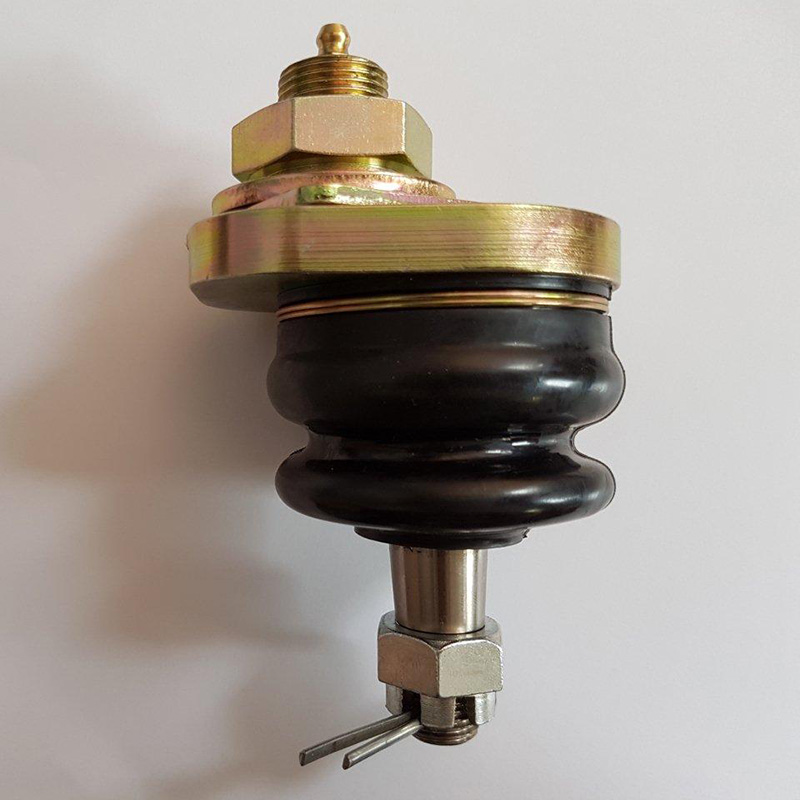

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Upper Control Arm Ball Joint

CalOffroad replacement Upper Control Arm Ball Joint only - picture is upper and lower perspectives -Price is per each Joint.

Part No:BJBKUCAHLX
RRP $25 EACH

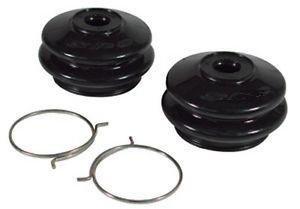

Toyota Hilux / Vigo IFS 150 Series - CalOffroad  Upper Control Arm Ball Joint Boot Kit

Part No: COHLX150T
RRP $950 Pair

Toyota Hilux/Vigo IFS 150 Series   - CalOffroad Bilstein Strut / Platinum Series Tapered Wire Coil Springs - Coilover Assemblies.

CalOffroad Custom Bilstein Strut Plus:
CalOffroad Platinum Series Tapered Wire Coil - Coilover

Do you want to buy CalOffroad front coilovers/Struts assembled?
Do you have an ARB kit with the front end very low and need to raise the front up?

The CalOffroad coilover strut assemblies can be purchased in parts or fully assembled.
If you have an existing CalOffroad Lift kit these can be used to raise the front to the correct height.

Part No:24-218528
RRP $ 270 Each

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Bilstein Silver Long Travel Monotube 0" to 3" Lift Front Strut - Height Adjustable

CalOffroad worked closely with Bilstein to develop a Long Travel Monotube Front Strut that meets CalOffroad specifications considered best suited for on and offroad, daily driving or touring Australia's harsh outback.

Details and Specifications

Part No: 24-228602
RRP $ 250 Each

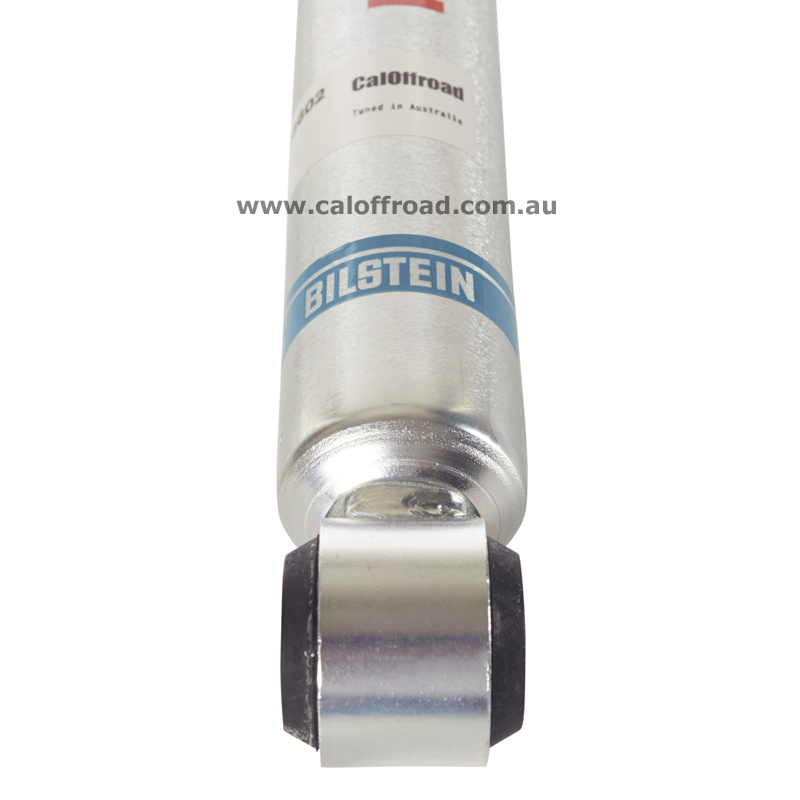

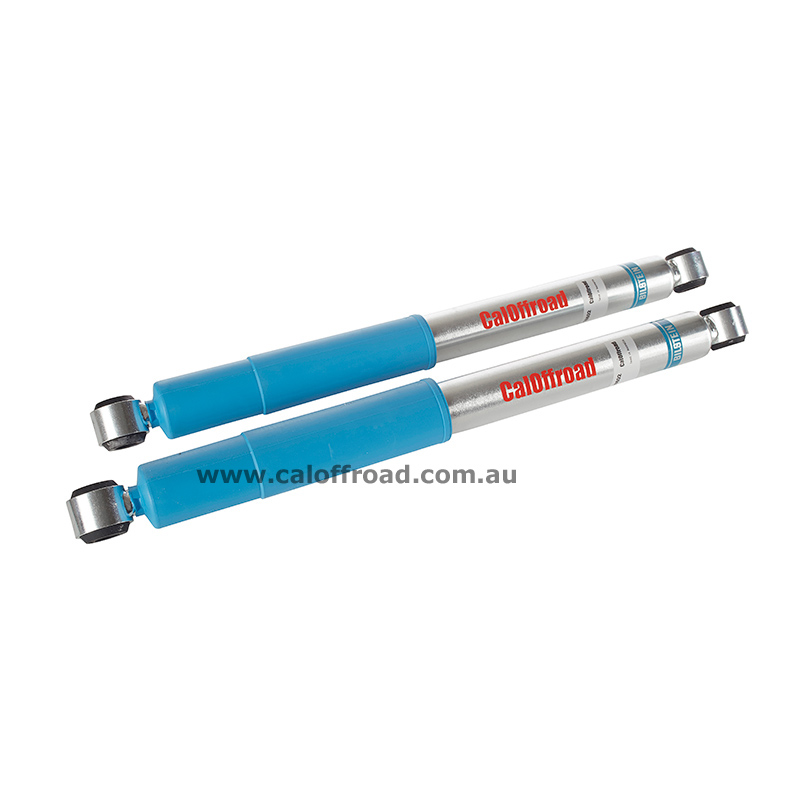

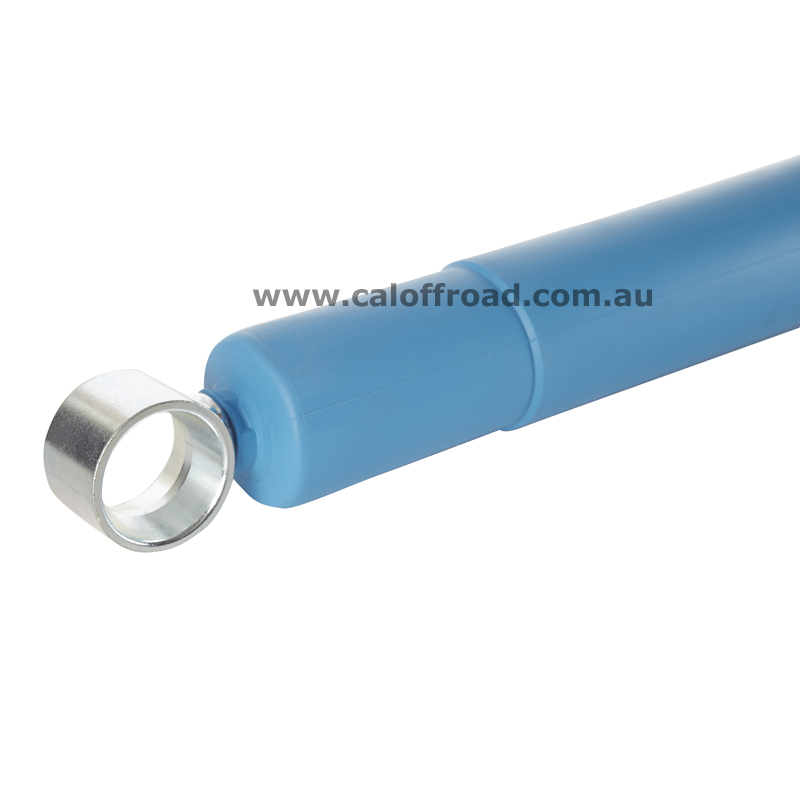

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Bilstein Silver Long Travel Monotube Rear Shock - 0" to 3" Lift

CalOffroad worked closely with Bilstein Germany to develop a Long Travel Monotube Rear Shock that meets CalOffroad specifications considered to be the best shock absorber for on and offroad, daily driving or touring Australia's harsh outback.

Featuring:
* Custom design silver body
* Fully rebuildable
* Designed in Australia
* Made in Germany
* Long travel
* Fully machined ring eyes

High Performance Monotube Design.

Part No: 986-02-024
RRP $750 Each

Toyota Hilux / Vigo IFS 150 Series - Fox Shock Front - 2.0 Performance Series Coil-over IFP  - 0 to 3" Lift.

This is the only true Hilux 3" lift coilover from Fox and features a specially made CalOffroad Platinum Series Coil Spring that allows the extra weight of accessories like a Bar and Winch.

Specifications

Body : 2.0" Metal impacted 6061-T6 aluminum will resist rust over time

Body Plating : Clear-anodized for a durable finish

Internal Reservoir : Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen

Components : Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft : 5/8" hard chrome plated heat-treated alloy steel

Piston : Race-developed high-flow piston design

Valving : Application specific valving to maximize performance

Seals : Redundant sealing pack system main seal, wiper seal, scraper seal

Oil : JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bearing : Large diameter, heavy-duty spherical

Mounting : Direct replacement for stock and aftermarket lifts kits

Part No: 985-24-030
RRP $280 Each

Toyota Hilux / Vigo IFS 150 Series - Fox Shock  Rear - 2.0 Performance Series IFP Smooth Body  Shock 9.1"- Up to 3" Lift

Overview - Specifications

Body : 2.0" Metal impacted 6061-T6 aluminum will resist rust over time

Body Plating : Clear-anodized for a durable finish

Internal Reservoir : Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen

Components : Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft : 5/8" hard chrome plated heat-treated alloy steel

Piston : Race-developed high-flow piston design

Valving : Application specific valving to maximize performance

Seals : Redundant sealing pack system main seal, wiper seal, scraper seal

Oil : JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bushings : Quiet nitrile rubber allows for increased suspension articulation

Mounting : Direct replacement for stock and aftermarket lifts kits

Part No:014-11-020
RRP $12 EACH

Toyota Hilux/Vigo IFS 150 Series  - Fox Bushing: Eyelet, Hourglass Polyurethane.

Eyelet, Hourglass [Ø 0.750 ID X 1.460 TLG] Polyurethane, 85A

Part No:CSHLXLDT
RRP $ 250 Pair

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Hilux Platinum Series Tapered Wire Coil Springs - 2" or 3" Lift - Light Duty

CalOffroad utilise the latest in coil spring technology to bring you the smoothest riding coils in the industry.
Using tapered wire and progressive pitch technology this spring provides comfort while reducing body roll and allows the correct ride height.
CalOffroad tapered wire coils use only the highest grade bar peeled high stress X5K steel in all our tapered wire range.
CalOffroad platinum series coils can give maximum long travel and can also increase up travel where other coils will bottom out and cause strut damage.

Specify Lift Height on Order

Part No:CSHLXHDT
RRP $ 250 Pair

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Hilux Platinum Series Tapered Wire Coil Springs - 2" or 3" Lift - Medium Duty

CalOffroad utilise the latest in coil spring technology to bring you the smoothest riding coils in the industry.
Using tapered wire and progressive pitch technology this spring provides comfort while reducing body roll and allows the correct ride height.
CalOffroad tapered wire coils use only the highest grade bar peeled high stress X5K steel in all our tapered wire range.
CalOffroad platinum series coils can give maximum long travel and can also increase up travel where other coils will bottom out and cause strut damage.

Specify Lift Height on Order

Part No:CSHEXHDT
RRP $ 250 Pair

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Hilux Platinum Series Tapered Wire Coil Springs - 2" or 3" Lift - Heavy Duty

CalOffroad utilise the latest in coil spring technology to bring you the smoothest riding coils in the industry.
Using tapered wire and progressive pitch technology this spring provides comfort while reducing body roll and allows the correct ride height.
CalOffroad tapered wire coils use only the highest grade bar peeled high stress X5K steel in all our tapered wire range.
CalOffroad platinum series coils can give maximum long travel and can also increase up travel where other coils will bottom out and cause strut damage.

Specify Lift Height on Order

Part No:LSHLX150LD
RRP $ 330 Each

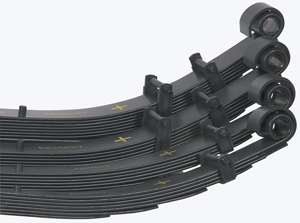

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Leaf Spring 2" - 3" Lift  - Light Duty

CalOffroad leaf lengths are designed and calculated to achieve a high performance spring.
Top quality Silicon Alloy Spring Steel or Medium to High Carbon Spring Steel are used.
The springs are scragged to help eliminate sagging.
Stringent quality control procedures for the heat treatment (tempering) process ensure CalOffroad springs are made the same exceptional way.

Details and Specifications

Part No:LSHLX150MD
RRP $ 330 Each

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Leaf Spring 2" - 3" Lift - Medium Duty

CalOffroad leaf lengths are designed and calculated to achieve a high performance spring.
Top quality Silicon Alloy Spring Steel or Medium to High Carbon Spring Steel are used.
The springs are scragged to help eliminate sagging.
Stringent quality control procedures for the heat treatment (tempering) process ensure CalOffroad springs are made the same exceptional way.

Details and Specifications

Part No:LSHLX150HD
RRP $ 330 Each

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Leaf Spring 2" - 3" Lift - Heavy Duty

CalOffroad leaf lengths are designed and calculated to achieve a high performance spring.
Top quality Silicon Alloy Spring Steel or Medium to High Carbon Spring Steel are used.
The springs are scragged to help eliminate sagging.
Stringent quality control procedures for the heat treatment (tempering) process ensure CalOffroad springs are made the same exceptional way.

Details and Specifications

Part No: DDKHLX
RRP $ 179 Kit

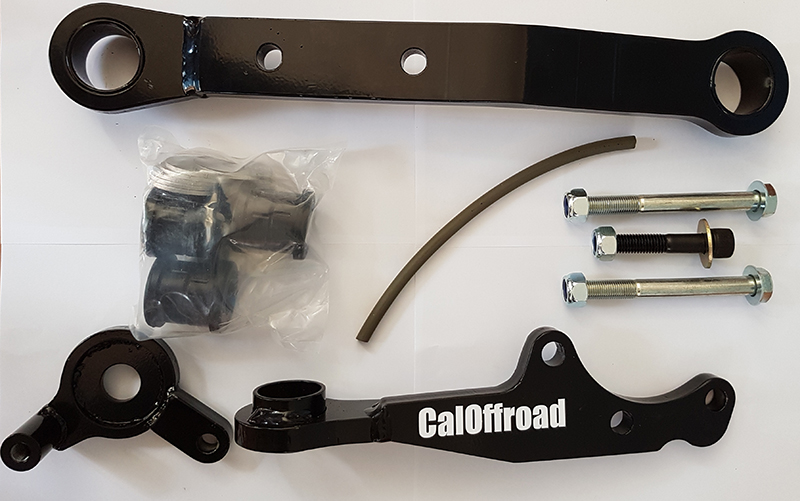

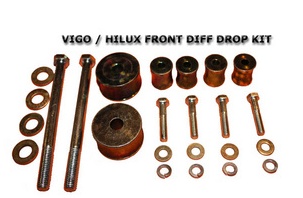

Toyota Hilux/Vigo IFS 150 Series - CalOffroad 1in Diff Drop Kit

Diff Drop Kits are designed to be fitted when 2 inch or bigger lifts are performed.
This Kit enables the Diff to be dropped one inch down and this fixes the CV angles which then reduces wear and tear on the CV's
Without these drop kits fitted your Hilux will wear the CV boot out much quicker and the CV's also have additional strain on them which contributes to breaking them much easier.

Part No: DDKHLX30
RRP $ 520 Kit

Toyota Hilux / Vigo IFS 150 Series - CalOffroad 30mm Diff Drop Kit

Drop the Diff 30mm and improves the drivers side weak link by reinforcing the drivers side diff mounting bracket and mounting it to the rear crossmember as well as the front cross member, adding more strength over the standard setup.

Part No:STB120150
RRP $ 25 Each

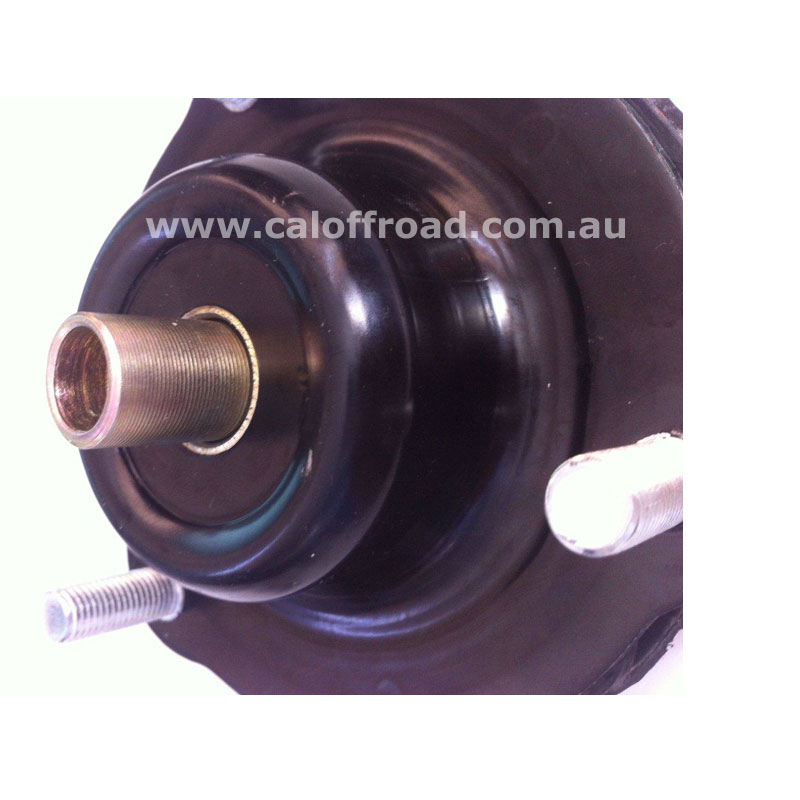

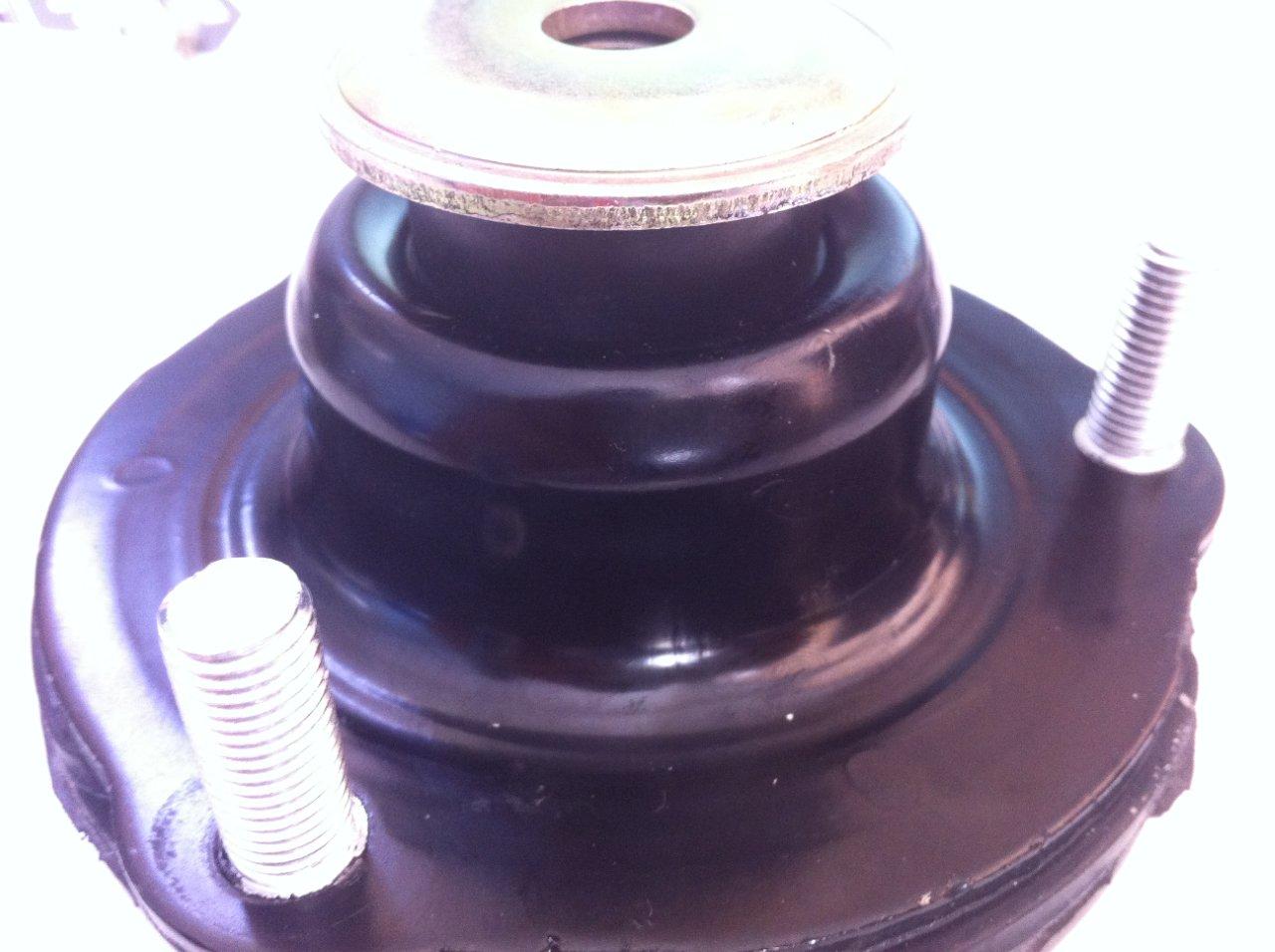

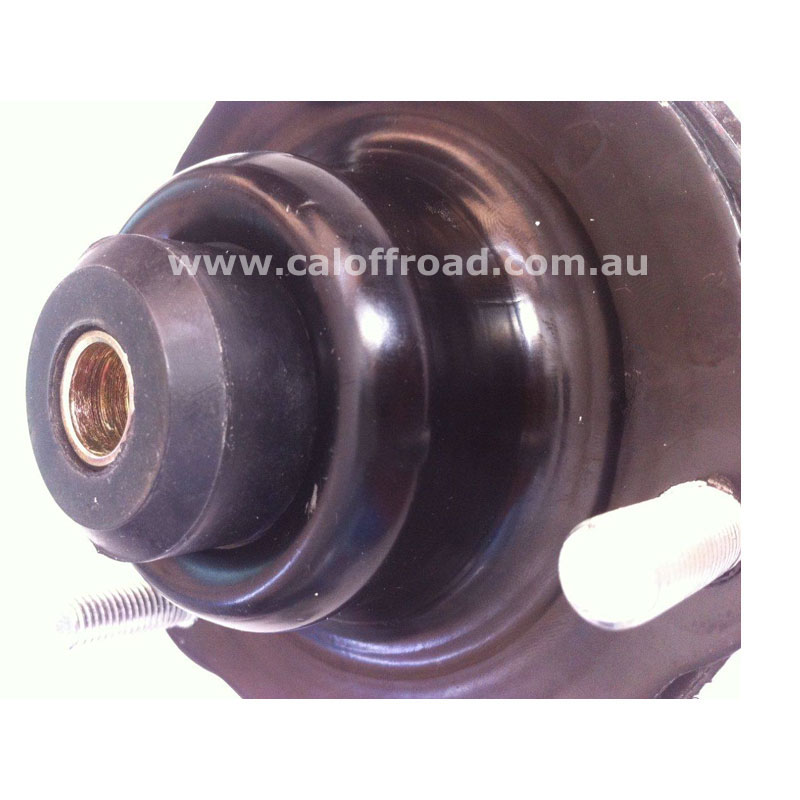

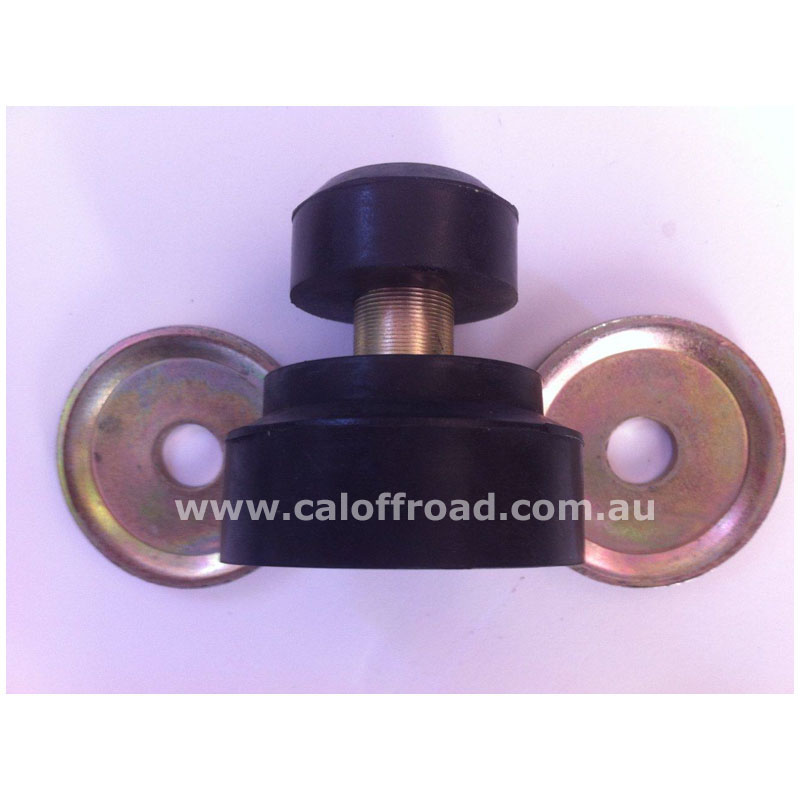

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Strut Top Bush

Replace the standard rubbers with the CalOffroad strut top bushes.
Designed to help elimitate strut top wear and possible damage to strut shaft.

It is a common problem on standard strut tops for the rubber bush to wear out especially on lifted vehicles or vehicles that see offroad use and this causes the strut shaft to wear through the strut top plate causing unwanted damage to the strut top as well as damaging the strut shaft which can be costly to replace.
Features:
* Much larger lower bush stops strut shaft walking sideways.
* Centre dividing crush tube eliminates strut coming on contact with strut top.
* New upper heavy duty rubber bush.
* Heavy duty washers.

Part No:ST120150
RRP $ 75 Each

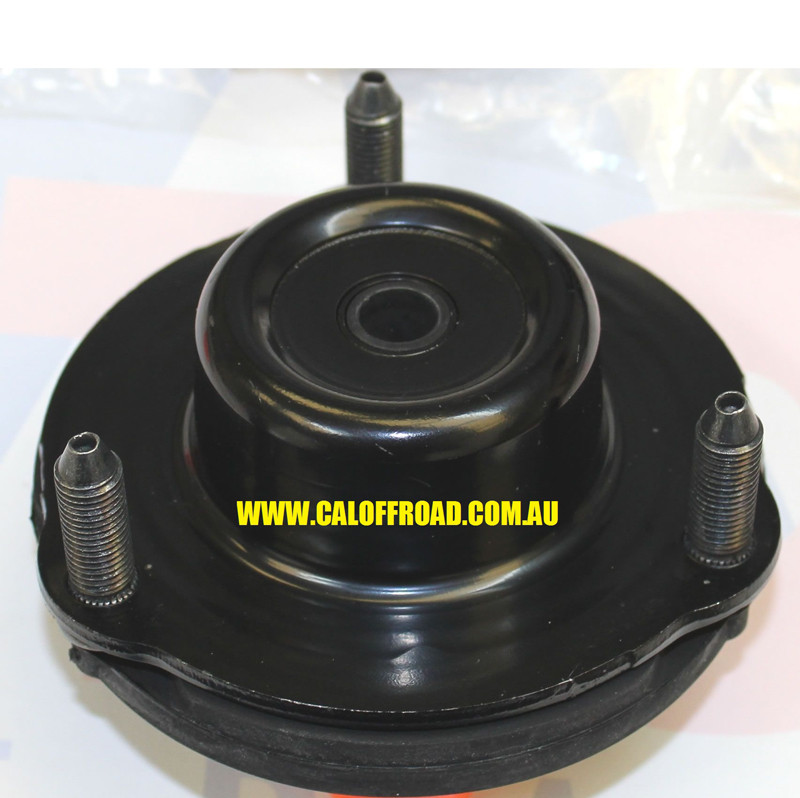

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Strut Top

Replace your factory worn out strut tops with CalOffroad aftermarket ones.
Can be used with standard struts or aftermarket struts.

Includes an upgraded bush system, better than OEM style, or you can also upgrade to our heavy duty bush kit STB120150.

KIT:
Part No: BLHLXKIT3
RRP $ 330 Kit.

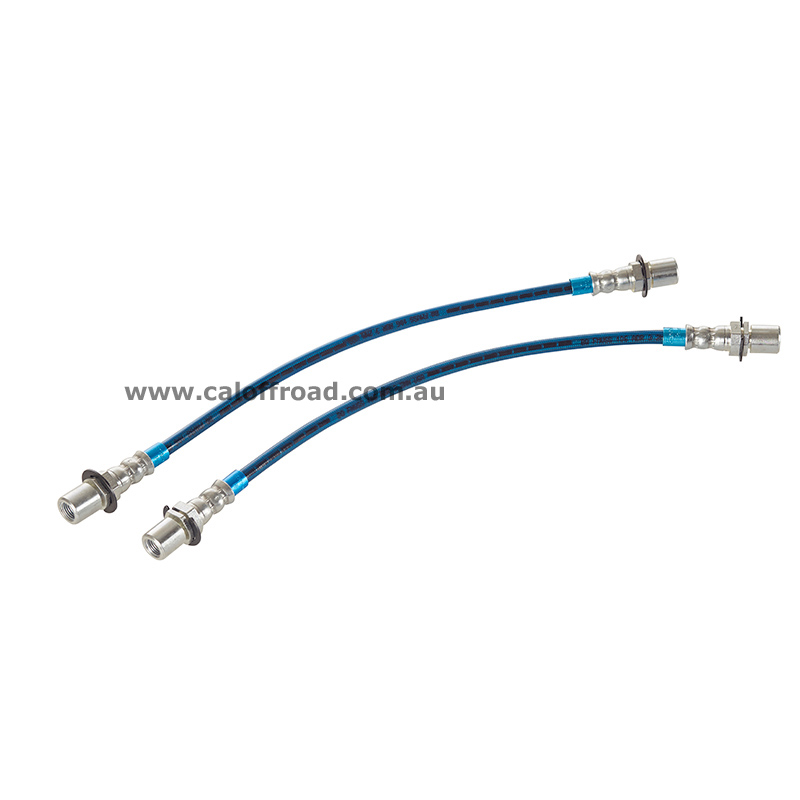

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Stainless Braided Brake Lines - KIT - Includes 2 x Front Lines 1 x Rear Line - To Suit up to 3" Lift

CalOffroad now offer to their range of Hilux accessories the upgraded braided brake lines for the front and rear of your hilux.

When lifting your truck or adding larger tyres these lines will help with added stopping power and the extra length needed with suspension lift

KIT: Includes 2 x fronts and 1 x rear stainless braided lines.

KIT:
Part No: BLHLXKIT4
RRP $ 440 Kit.

Toyota Hilux / Vigo IFS 150 Series - CalOffroad Stainless Braided Brake Lines - KIT - Includes 2 x Front Lines 2 x Rear Line - To Suit up to 3" Lift

CalOffroad now offer to their range of Hilux accessories the upgraded braided brake lines for the front and rear of your hilux.

When lifting your truck or adding larger tyres these lines will help with added stopping power and the extra length needed with suspension lift

KIT: Includes 2 x fronts and 2 x rear stainless braided lines.

FRONT:
Part No: BLHLXFP
RRP $ 220 Pair.

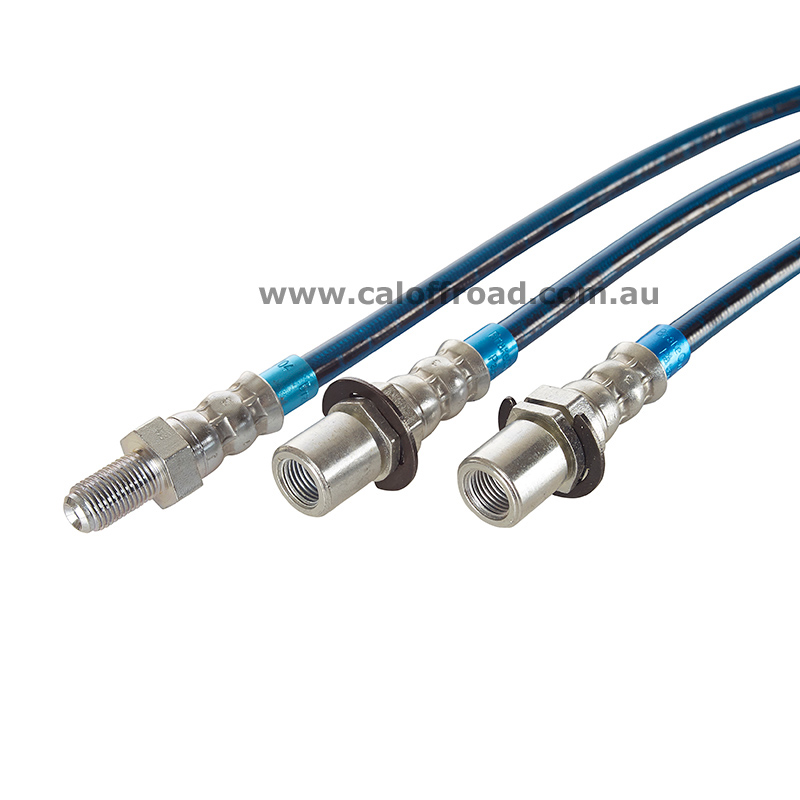

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Stainless Braided Brake Lines - FRONT - Includes 2 x Front Lines - To Suit up to 3" Lift

CalOffroad now offer to their range of Hilux accessories the upgraded braided brake lines for the front and rear of your hilux.

When lifting your truck or adding larger tyres these lines will help with added stopping power and the extra length needed with suspension lift

FRONT: Includes 2 Front Lines.

Part No: BLHLXRS
RRP $ 110 Each.

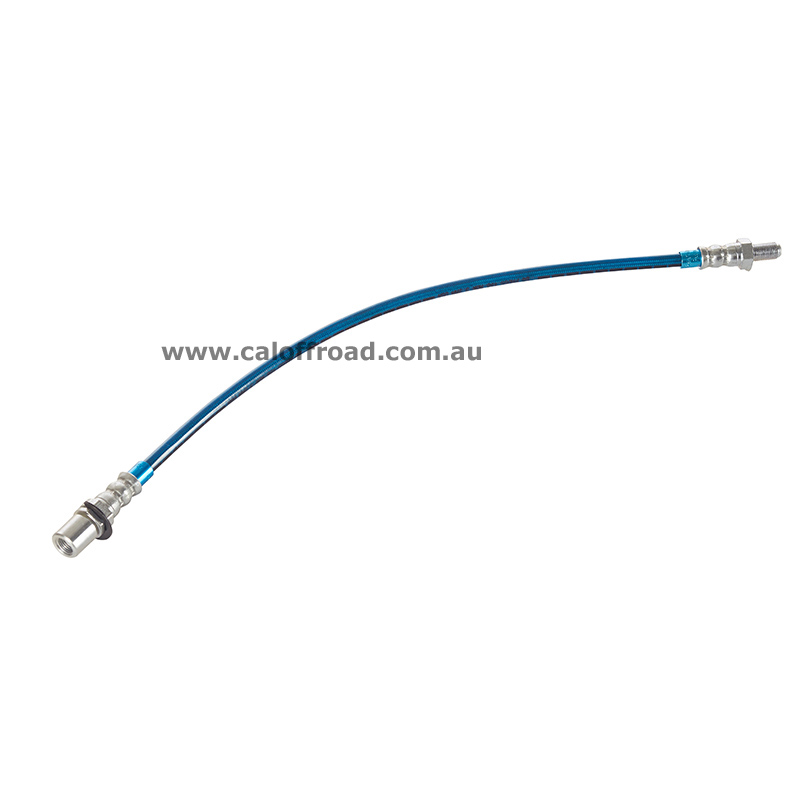

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Stainless Braided Brake Lines - REAR - Includes 1 x Rear Line - To suit up to 3" Lift  and 2010 on Hilux with stability control dual rear brake lines.

CalOffroad now offer to their range of Hilux accessories the upgraded braided brake lines for the front and rear of your hilux.

When lifting your truck or adding larger tyres these lines will help with added stopping power and the extra length needed with suspension lift

REAR: Includes 1 Rear Line.

Part No: BLHLXRP
RRP $ 220 Pair.

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Stainless Braided Brake Lines - REAR - Includes 2 x Rear Lines - To Suit up to 3" Lift and 2010 on Hilux with stability control dual rear brake lines..

CalOffroad now offer to their range of Hilux accessories the upgraded braided brake lines for the rear of your hilux that has dual rear lines.

When lifting your truck or adding larger tyres these lines will help with added stopping power and the extra length needed with suspension lift

REAR dual lines, to suit 2010 on models with stability control dual rear brake lines : Includes 2 Rear Lines.

Suited for:
Standard Height; 2" Lift; 3" Lift; or can make to Custom Length.

Part No: CORBPVEHL
RRP $ 22 Each

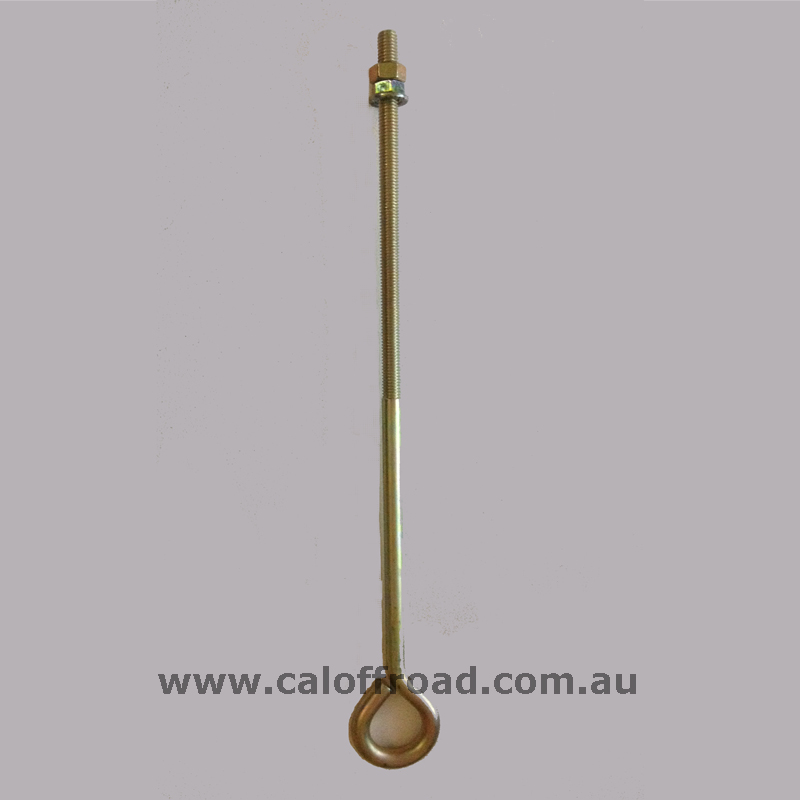

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Hilux Brake Portioning Valve Extension

This extension is a must for any lift 2 inch or higher as it will help keep rear brakes adjusted and working correctly.

Part No:BKHLX150
RRP $ 95 KIT

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Poly Bush Kit Rear Leaves

CalOffroad Polyurethane bushes, fitted and used correctly will give a greater extended life than a rubber bush.
It is recommended that greasable shackle and pin kits be fitted with polyurethane bush as it will increase the life of the bush even further.
Polyurethane material is resistant to minerals, petrochemicals and salt water and can withstand tempurature extremes.
It is essential that all bushes (rubber and poly) be fitted to good pins with no corrosion or wear marks, as this would decrease the life of the bush dramatically.

Part No: GSHLX150R
RRP $ 105 Pair

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Greasable Shackle Rear

CalOffroad Standard Length Greaseable shackles are used to give a smoother softer ride and will ensure longer life from your bushes.
Features:
*Hardened* in most cases the shackle pins are case hardened to 2.0mm providing higher resistance to wear and resulting in increased pin and bush life.
*Machined *allows greater dispersion and surface coverage of grease aiding in the reduction of shackle pin deterioration, providing superior performance.
*Galvanised and plated* Higher resistance to rust and pin surface deterioration.
*Increased pin life* shackles and plates manufactured to O.E specification or above for increased life and safety

Part No:SS12015010
RRP $ 149

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Front Strut Spacer 20mm Lift, Levelling Kit

Levelling kits are the fastest, least expensive way to bring the front of your vehicle level with the rear.
Our innovative Smart Strut Technology mounts on top of the strut assembly, eliminating the hassle, time and danger of compressing springs.
The strut extension will maintain a smooth OEM ride without adding pressure to stock suspension components.
This strut spacer is 10mm high and will give approx. 20mm lift

Part No:SS12015025
RRP $ 199

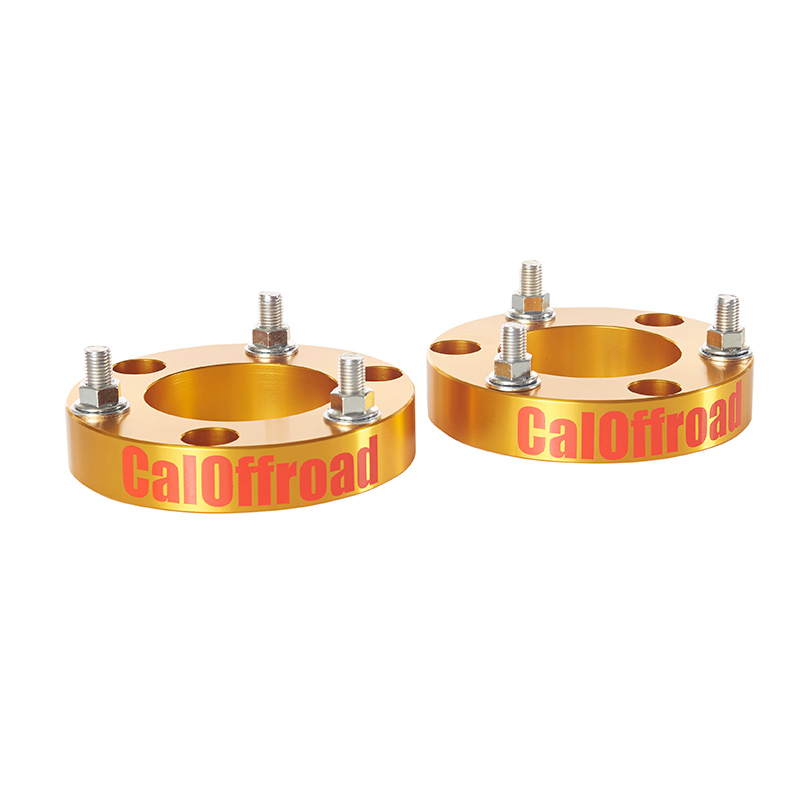

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Front Strut Spacer 50 - 55 mm Lift, Levelling Kit

Levelling kits are the fastest, least expensive way to bring the front of your vehicle level with the rear.
Our innovative Smart Strut Technology mounts on top of the strut assembly, eliminating the hassle, time and danger of compressing springs.
The strut extension will maintain a smooth OEM ride without adding pressure to stock suspension components.
This strut spacer is 25 mm high and will give approx. 2" inch, 50 - 55 mm  lift

Part No:SP12015035
RRP $ 199

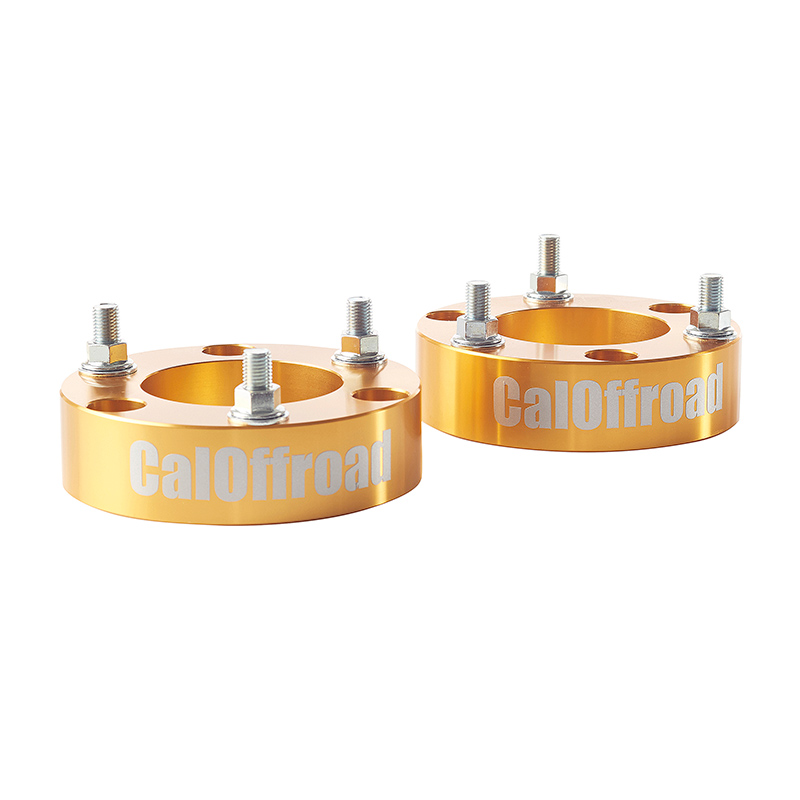

Toyota Hilux/Vigo IFS 150 Series - CalOffroad Front Strut Spacer 65 - 70 mm Lift, Levelling Kit

Levelling kits are the fastest, least expensive way to bring the front of your vehicle level with the rear.
Our innovative Smart Strut Technology mounts on top of the strut assembly, eliminating the hassle, time and danger of compressing springs.
The strut extension will maintain a smooth OEM ride without adding pressure to stock suspension components.
This strut spacer is 35mm high and will give approx. 65 - 70 mm lift

Part No: RB120
RRP $ 99 Pair

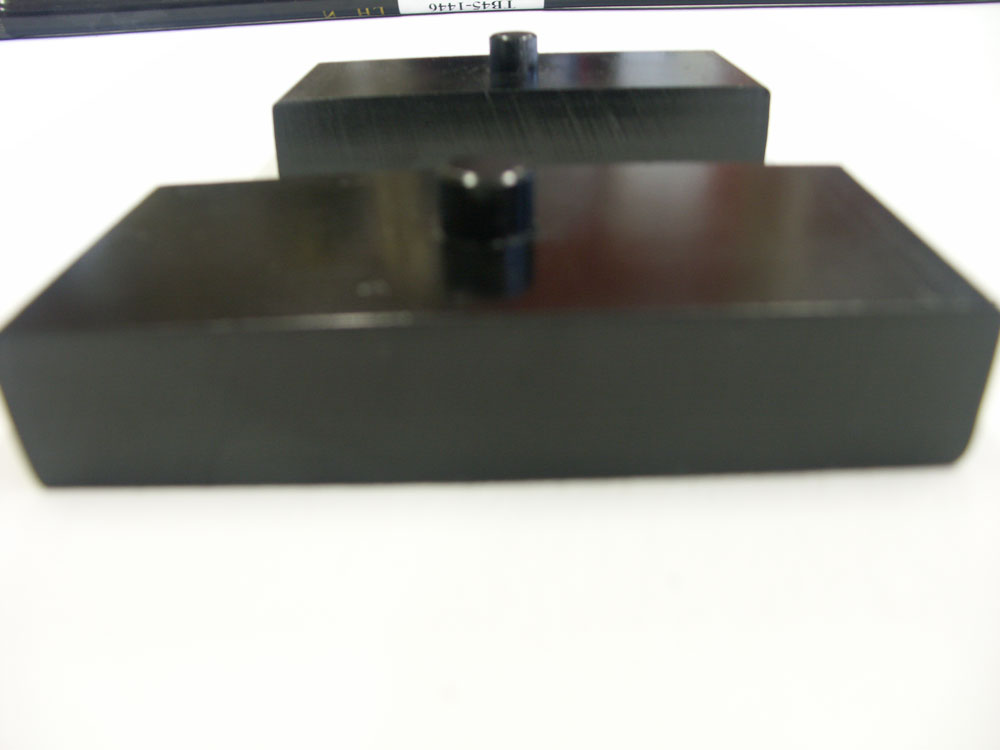

Toyota Hilux/Vigo IFS 150 Series - Caloffroad 1" Rear Suspension Block

CalOffroad 1" blocks are designed to give approximately 1" lift on spring over models.
25mm thick solid steel with centre locating pin on one side and locating hole on the other side
Longer U bolts may be needed

Prod No: RB125
RRP $ 125 Pair

Toyota Hilux/Vigo IFS 150 Series - CalOffroad 1.25" Rear Suspension Block

SUSPENSION BLOCKS, IRON, SET OF 2 -- Install on rear leaf springs TO LIFT VEHICLE 1.25" inches.
Provides 1.25 in. rear lift
1-piece construction with integrated axle pins
Made of high quality ductile iron for durability and long service life.

Part No: RB220
RRP $ 140 Pair

Toyota Hilux/Vigo IFS 150 Series - Caloffroad 2 inch Rear Suspension Block

Features:
* Rear Block 2 in.
* Center Pinned 3 Deg.
* Ductile Iron

Fits all Hilux Models

Part No: UB6218014
RRP $ 15 Each

Toyota Hilux/Vigo IFS 150 Series - CalOffroad U-Bolts Hlx 150 Series - 62x180xM14

CalOffroad U Bolts are a durable and strengthened product made of high quality material, to generate a long life.
All U Bolts are supplied with deep nuts for improved torque-down strength.

Part No: UB6221014
RRP $ 15 Each

Toyota Hilux/Vigo IFS 150 Series - CalOffroad U-Bolts Hlx 150 Series - 62x210xM14

CalOffroad U Bolts are a durable and strengthened product made of high quality material, to generate a long life.
All U Bolts are supplied with deep nuts for improved torque-down strength.

Part No: UB6224014
RRP $ 25 Each

Toyota Hilux/Vigo IFS 150 Series - CalOffroad U-Bolts Hlx 150 Series - 62x240xM14

CalOffroad U Bolts are a durable and strengthened product made of high quality material, to generate a long life.
All U Bolts are supplied with deep nuts for improved torque-down strength.

Part No: RPHL05TP
RRP $ 115 Pair

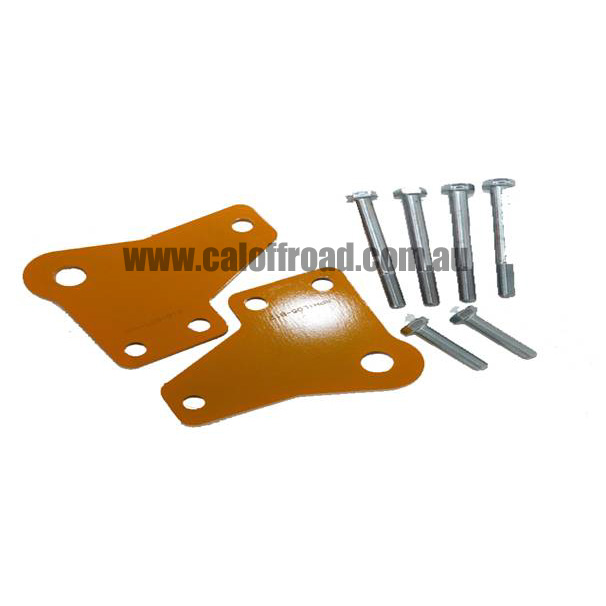

Toyota Hilux 2005 On - Recovery Tow Point Heavy Duty

A must have for anyone considering any type of off road or remote touring,
The factory tow points are no better than a tie down point for transport.
These H/D Recovery/tow points will allow you to use a Bridel strap to ensure an even tow.

Some specifications:
* Made from 10mm plate Steel
* Using SS41 carbon steel plate (Q235)
* Supplied with Hi Tensile Bolts
* Direct bolt on to your chassis
* No cutting or welding required
* Sold as a pair
* Option of using a Bridle strap
* Powder coated Yellow for Hi visibility
* Destruction tested to over 59kN (6.01 ton force)

These points will suit the 3.5t Bow Shackle only, they will not accept a 4.75t Shackle pin.
Please note: does not fit where factory Toyota alloy or steel bar, or ARB bull bar is fitted.
